The Internal Network provides an additional level of security that removes the reliance on a host firewell to protect our physical host.

I will use VirtualBox for the configuration of Windows 10 and REMnux (Linux Toolkit for Malware Analysis) for my Internal Network.

REMnux Configuration

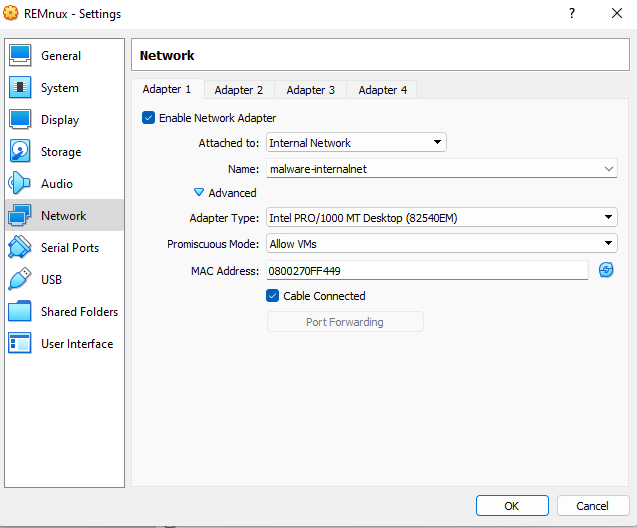

Perform the following steps to create an Internal Network:

• In VirtualBox, right-click on the REMnux VM and go to settings
• Network
• In the Attached To dropdown menu, select Internal Network
• Add a name to the new Internal Network
• Click the drop down arrow next to Advanced and change the Promiscuous Mode to “Allow VMs”
• Click Ok and Power on the REMnux

Static IP Configuration

There is no DHCP server in the Internal Network, we have to manually define a static IP adress for the REMnux host. For this we gonna use netplan utility. Netplan utility uses a YAML config file to control the host’s adapter settings.

Open the netplan config file in vim with sudo:

$ sudo vim /etc/netplan/01-netcfg.yaml

# This file describes the network interfaces available on your system
# For more information, see netplan(5).
network:
  version: 2
  renderer: networkd
  ethernets:
    enp0s3:
      dhcp4: yes

We want to remove the DHCP and assign all network information statically.

Change dhcp4 to no, add the addresses and gateway4 objects.

# This file describes the network interfaces available on your system
# For more information, see netplan(5).
network:
  version: 2
  renderer: networkd
ethernets:
    enp0s3:
     dhcp4: no
     addresses: [10.10.0.3/24]
     gateway4: 10.0.0.1

$ sudo netplan apply

$ ip -br -c a
lo               UNKNOWN        127.0.0.1/8 ::1/128
enp0s3           UP             10.0.0.3/24 fe80::a00:27ff:fe0f:f449/64

iNetSim Configuration

iNetSim is going to be our Internet Simulator.

(iNetSim always gonna give HTTP 200 OK and give fake binaries for request, is awesome to capture network indicators of malwares.)

$ sudo vim /etc/inetsim/inetsim.conf

We want to enable start_service dns and change our dns_default_ip

# echo_udp, discard_tcp, discard_udp, quotd_tcp,
# quotd_udp, chargen_tcp, chargen_udp, finger,
# ident, syslog, dummy_tcp, dummy_udp, smtps, pop3s,
# ftps, irc, https
#
start_service dns
start_service http
start_service https
start_service smtp
start_service smtps
start_service pop3
start_service pop3s
start_service ftp
start_service ftps
#start_service tftp
#start_service irc
#start_service ntp

#########################################
# dns_default_ip
#
# Default IP address to return with DNS replies
#
# Syntax: dns_default_ip <IP address>
#
# Default: 127.0.0.1
#
dns_default_ip          10.0.0.3

Windows Configuration

Windows is more straightforward than REMnux for this setup.

• In VirtualBox, right-click on the Windows VM and select settings
• Network
• Associate Windows to the same Internal Network that we made earlier
• Click the drop down arrow next to Advanced and change the Promiscuous Mode to “Allow VMs”
• Click Ok and Power on the Windows

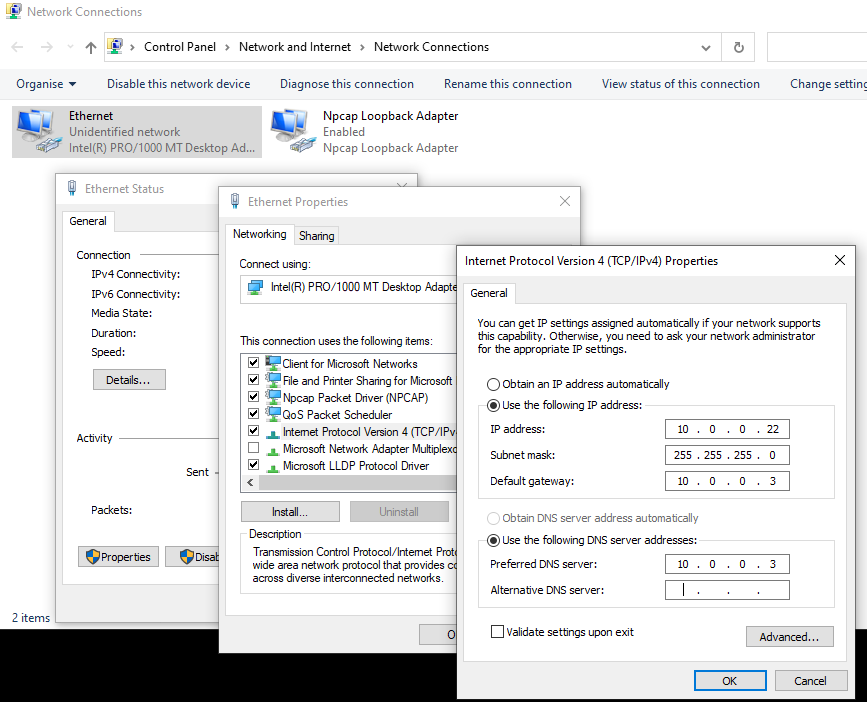

On Windows search for View Network Connections , to get to the Network Connection Adapter Settings.

Right-click on the Ethernet Adapter and select Properties → IPv4 Properties.

We will now statically define our IPv4 settings:

• The IPv4 address it doesn’t matter what it’s set to as long as it’s a valid address in the 10.0.0.0/24 network.
• The Subnet Mask to configure a /24 network.
• Our Default Gateway to be the REMnux host so we can make use of INetSim.
• Our DNS server to be the REMnux host so we can make use of INetSim.

c:\Users\hollow\Desktop>ipconfig /all

Windows IP Configuration

   Host Name . . . . . . . . . . . . : DESKTOP-0RVV361
   Primary Dns Suffix  . . . . . . . :
   Node Type . . . . . . . . . . . . : Hybrid
   IP Routing Enabled. . . . . . . . : No
   WINS Proxy Enabled. . . . . . . . : No

Ethernet adapter Ethernet:

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Intel(R) PRO/1000 MT Desktop Adapter
   Physical Address. . . . . . . . . : 08-00-27-CA-87-0F
   DHCP Enabled. . . . . . . . . . . : No
   Autoconfiguration Enabled . . . . : Yes
   Link-local IPv6 Address . . . . . : fe80::8cab:59ec:da25:aebd%4(Preferred)
   IPv4 Address. . . . . . . . . . . : 10.0.0.22(Preferred)
   Subnet Mask . . . . . . . . . . . : 255.255.255.0
   Default Gateway . . . . . . . . . : 10.0.0.3
   DHCPv6 IAID . . . . . . . . . . . : 101187623
   DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-2A-77-59-DC-08-00-27-CA-87-0F
   DNS Servers . . . . . . . . . . . : 10.0.0.3
   NetBIOS over Tcpip. . . . . . . . : Enabled

Ethernet adapter Npcap Loopback Adapter:

   Connection-specific DNS Suffix  . :
   Description . . . . . . . . . . . : Npcap Loopback Adapter
   Physical Address. . . . . . . . . : 02-00-4C-4F-4F-50
   DHCP Enabled. . . . . . . . . . . : Yes
   Autoconfiguration Enabled . . . . : Yes
   Link-local IPv6 Address . . . . . : fe80::31fb:9a74:650a:82df%5(Preferred)
   Autoconfiguration IPv4 Address. . : 169.254.130.223(Preferred)
   Subnet Mask . . . . . . . . . . . : 255.255.0.0
   Default Gateway . . . . . . . . . :
   DHCPv6 IAID . . . . . . . . . . . : 184680524
   DHCPv6 Client DUID. . . . . . . . : 00-01-00-01-2A-77-59-DC-08-00-27-CA-87-0F
   DNS Servers . . . . . . . . . . . : fec0:0:0:ffff::1%1
                                       fec0:0:0:ffff::2%1
                                       fec0:0:0:ffff::3%1
   NetBIOS over Tcpip. . . . . . . . : Enabled

Done. Internal Network is configured

Now we are ready to detonate some samples of malware on our Windows machine and use our internet simulator(REMnux) to capture Network Indicators.

That’s All Folks
